i22X - Multi-functional, Modular Desktop AOI

A benchtop, multifunctional tool for visual inspection and traceability, especially for small precision parts.

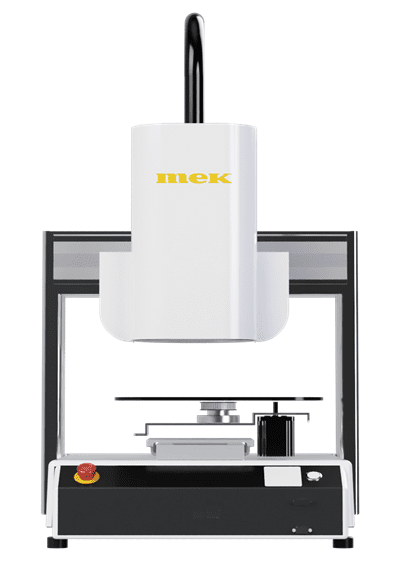

The i22X AOI runs on three precision axes (four axes on the i22XDA-300) easily controlled by the mouse. Combining a 5 megapixel camera with the lighting style of your choice, it effectively checks solder joints, wrong components, polarity,  label presence/absence, text, barcodes or numerical IDs on parts and detects color differences.

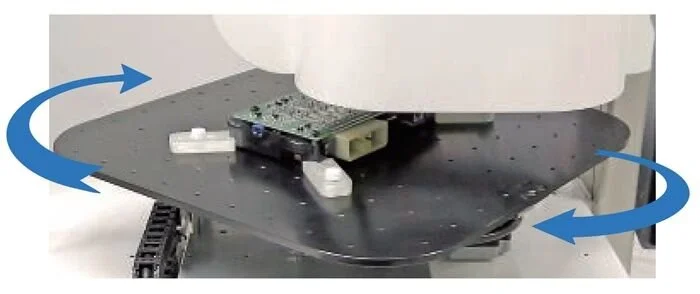

An easy-to-operate rotary table offering 360° horizontal rotation for omnidirectional inspection (-180° to 180°) is available on the the i22DX 300 model. Just select the rotation angle with the mouse.

Automate The Visual Inspection Process

  • Wide Range of Inspection Uses

    • Component Inspection

    • Solder Inspection

    • Part / Color Difference

    • Missing / wrong components

    • Text Inspection

    • Barcode reading

  • Traceability: Automatically saves inspection results & barcode information

  • Inspection Range Up to 500mm

  • Choose Lighting to Fit Your Application: White Lighting, DOAL, RGB Lighting, Red Side Lighting

  • System Configuration: Inspection Unit, PC, Display, Controller, Switchbox, Safety cover.
