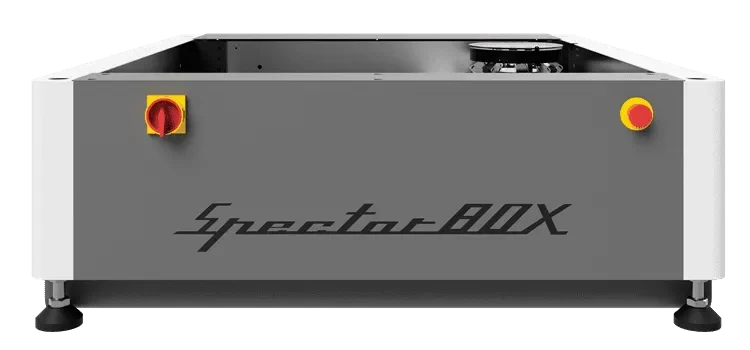

SpectorBox Modular AOI

Modular AOI for Inspection of Wave & Selective Soldering

The Mek SpectorBOX modular AOI platform is expertly designed for inspecting Wave & Selective Soldering in both through-hole (THT) and surface mount (SMT) components on Printed Circuit Boards (PCBs). It seamlessly integrates with conveyor systems, allowing for efficient inspections within solder frames. It works well for robotic, laser, and hand soldered board inspection, as well as conformal coating inspection(CCI).

In THT assembly lines, where custom-built solutions and handling systems for dedicated products are the norm, standard SMT AOI machines fall short due to size, weight, clearance, and environmental conditions. Mek’s modular platform offers a customizable solution, making it adaptable to your unique production environment. Many integrators have already successfully incorporated Mek’s modular AOI into complex THT production lines.

The Mek SpectorBOX AOI is fully compatible with Mek EZPro Software which automates AOI machine programming, making it user-independent and easy.

Features and Overview:

  • Defect display with 9-angle microscopic views (up to 50x magnification) reducing operator judgement failures

  • 9-camera systems eliminate manual PCB handling and post-classification by microscopes

  • Anomaly detection for bridges, balls and foreign material

  • Component inspection with high clearance possibilities

  • Easy Exchangeable and Serviceable module concept

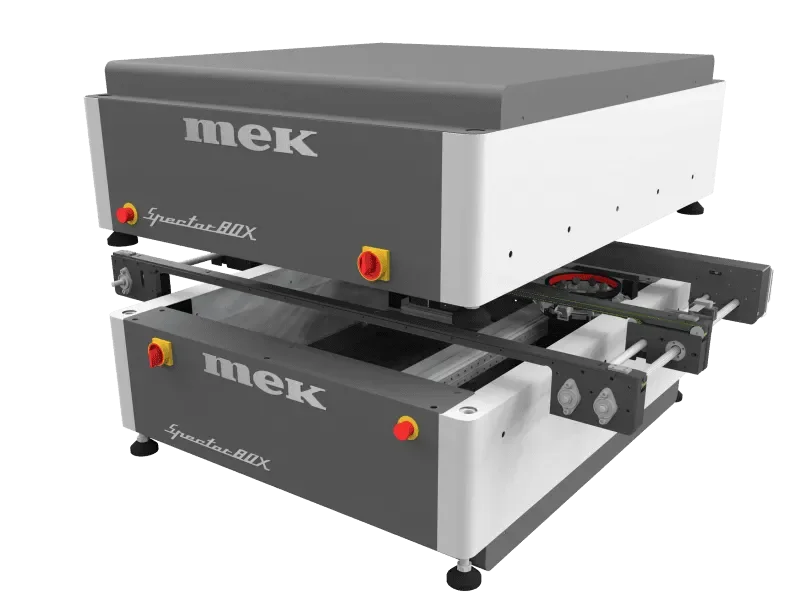

  • Suitable for Top, Bottom or Top+ Bottom side inspection - combine 2 units for simultaneous Bottom-Up and Top-Down inspection with up to 18 cameras.

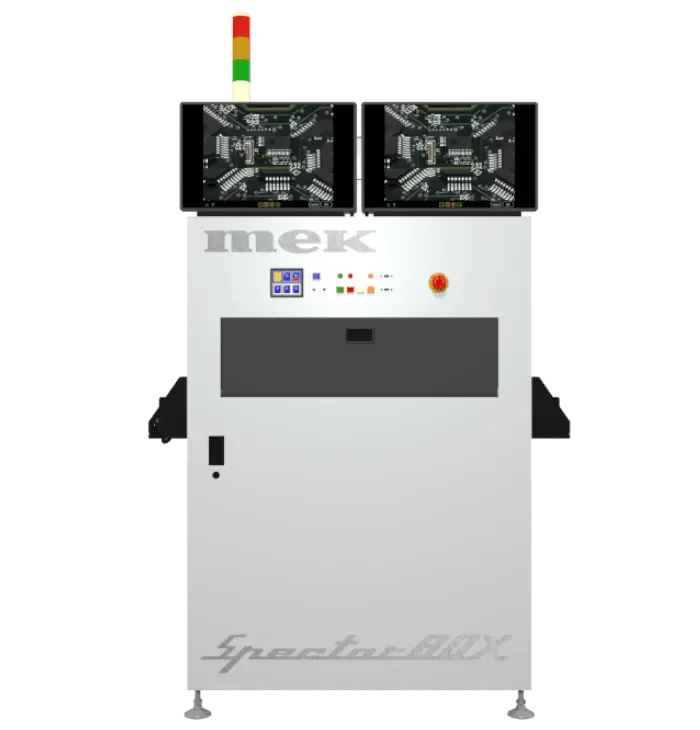

  • Integrates well with custom conveyor systems for efficient inspections within solder frames

  • Adopted by many integrators into complex THT production lines

  • Complementing Mek’s VeriSpector for Manual Assembly Guidance and Inspection

  • Connects to Mek’s Catch system for handling inspection data for Repair, SPC, Monitoring, and MES communication

  • Catch system runs by Win11 Platform. Managed by IT divisions outside the factory floor

  • Proven high-depth inspection algorithms with minimal false call rates

  • Meniscus profile determination accommodates various THT solder joint and pin shapes

  • Models available with 8 side cameras for inspection and defect review

  • Height verification inspection by using side cameras

  • Various clearance options up to 60mm (for soldering) and 130mm for components

  • Conformal Coating Inspection (CCI) model available

  • 80mm Z-axis for inspecting at different heights
