Verispector Manual Assembly AOI

Low-cost AOI For Manual THT Assembly Stations & Automated THT Production Lines

Mek VeriSpector AOI is a low cost AOI system for inspection of THT components before they enter the wave or selective soldering machine.

Expect short inspection times of under 5 seconds, allowing manufacturers to perform real time assembly and placement inspection, carry out repairs on the fly and prevent defects before they move into the next process.  Powered by Marantz 22X, the instant feedback provided to operators by VeriSpector helps eliminate failures and increase the quality and effectiveness of manual and semi-automatic manufacturing processes. Significant yield improvements are realized as a result.

Designed for PCBs from 460x300mm (18×12”″) up to 750mm x 500mm (29.5″x19.7″), our customizable cameras (24MP, 42MP, or 60MP) and customizable lighting options allow us to hone these stations specifically to your needs.

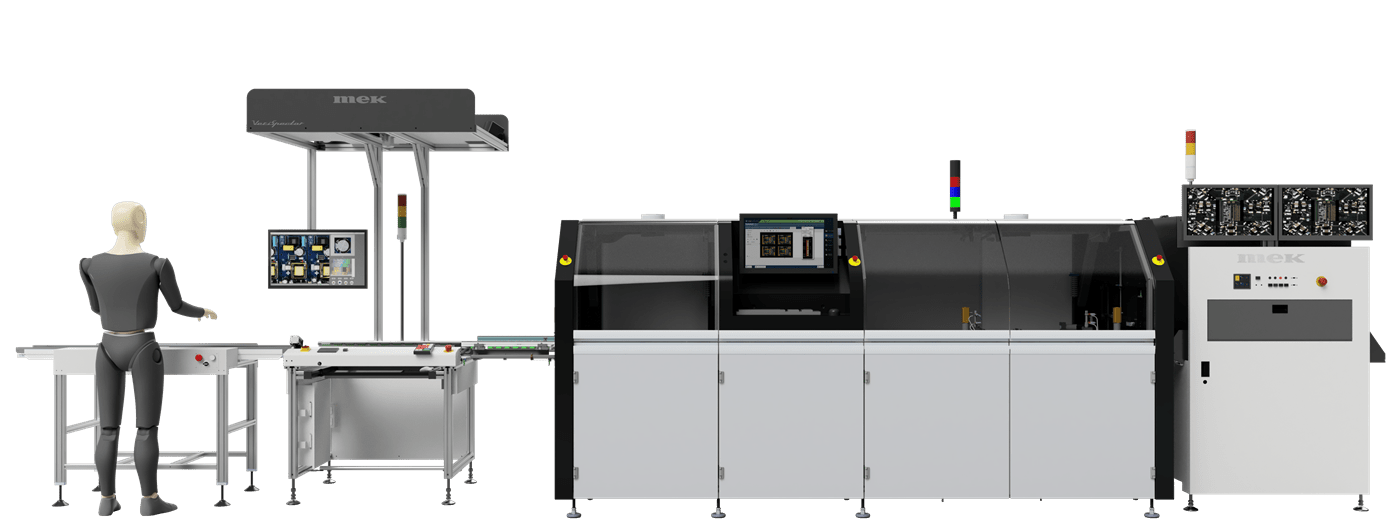

Inline Operation Option for Multiple Assembly Stations

Often there are multiple manual assembly stations in factories that ideally require separate optical inspection at each station. To minimize AOI investment costs, an inline configuration is preferable.

Developed in cooperation with Nutek, a brand well known in Board Handling & Traceability Equipment, the inline version of the successful VeriSpector THT AOI delivers maximum robustness and compatibility. A wide range of options are available to fully automate the inspection process.

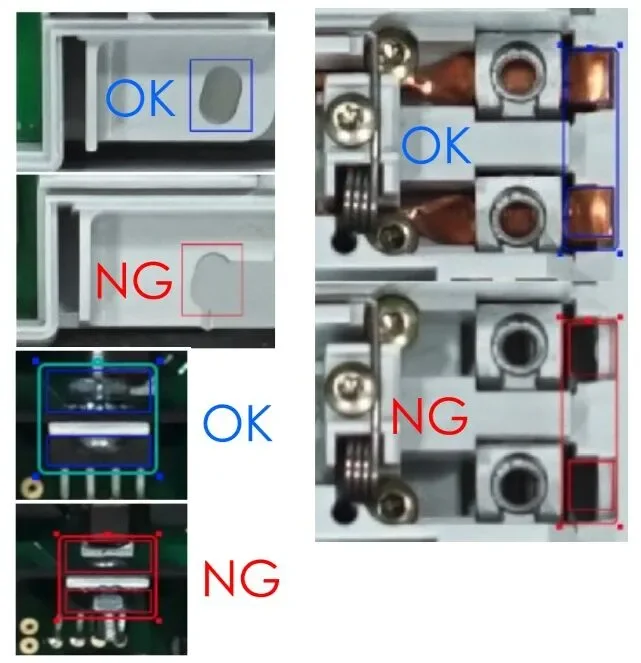

Flexible Inspection Capabilities

The VeriSpector AOI is designed for a wide verity of inspection needs including:

  • Presence/absence

  • Orientation

  • Shape

  • Offset

  • Polarity

  • Text verification

  • Fiducial reading

  • Colour check

  • 1D and 2D barcode reading

  • Assembly materials fittings

  • Damaged objects

  • And many more.
