PowerSpector Desktop AOI
Ultimate Flexibility, for SMT, THT and More

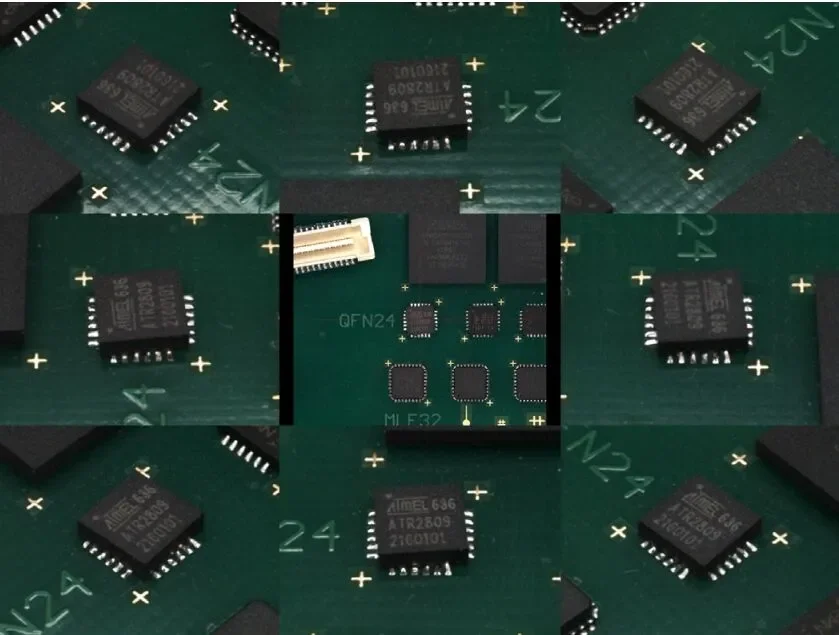

A valuable part of your workflow process, Mek inline AOI systems directly identify errors and emerging process trends. Packed with up to 9 multi-angle 25 MP cameras, refining complex process for optimal productivity in your electronics manufacturing environment has never been easier.

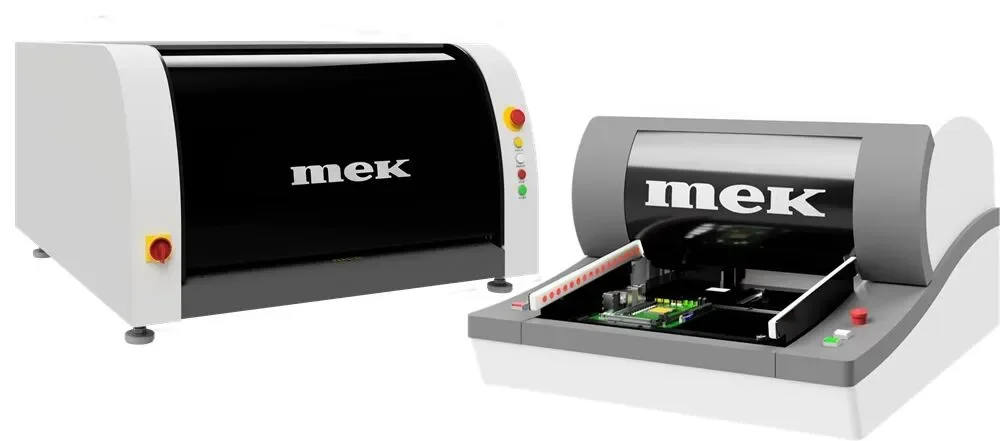

The Mek PowerSpector desktop Automated Optical Inspections systems, featuring the J series inspection Head, are designed for maximum defect coverage whilst maintaining short programming times.
Features:

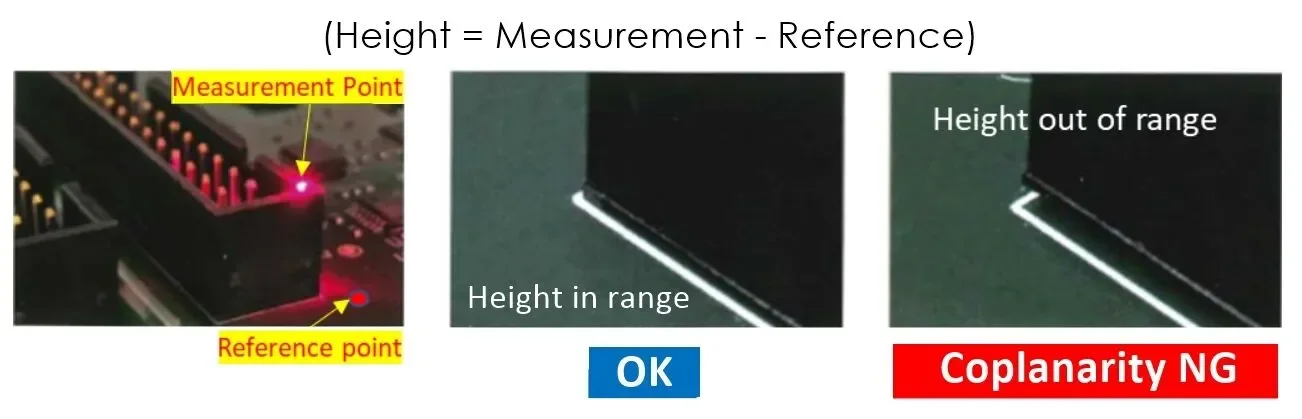

Revolutionary Selective 3D Laser Measurement Technology allows you to conduct selective height measurements of any object with unprecedented precision by assigning two points – a reference and a target –for accurate and reliable measurements.

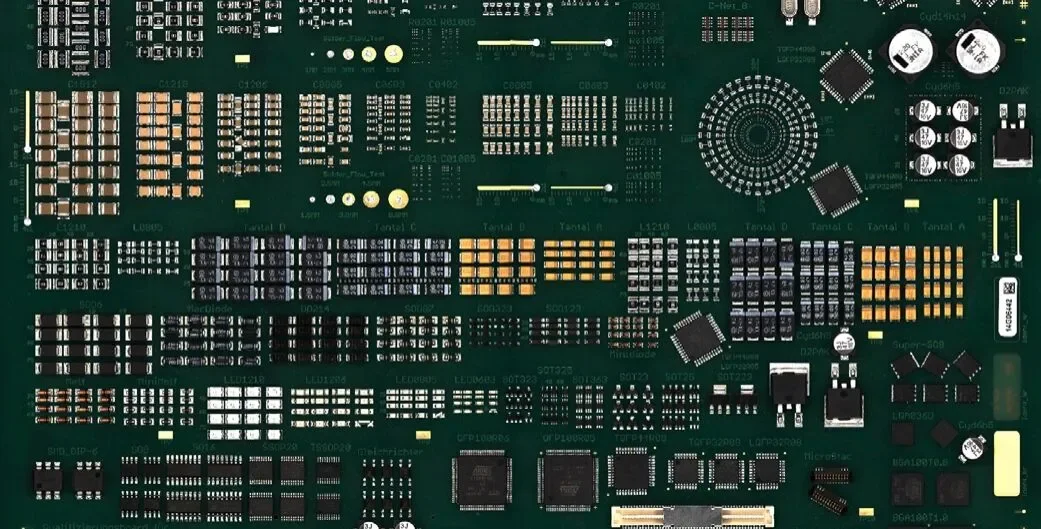

Inspect of taller components with a Top Clearance of 60mm and side cameras with a larger Field of View and 20µm resolution. A larger 3 angle lighting system secures optimal meniscus profiling in combination with increased top clearance.
Reliably inspecting SMT and THT component bodies for presence/absence, type, polarity, offset, text, colours etc. and components solder fillets for excessive, insufficient, no solder, shorts, lifted leads etc. Suitable for use in pre-reflow, post-reflow, post-wave and post-selective soldering, they can also be used for 2D solder paste inspection and first article inspection.
The XY drive gantry with ball screw mechanics allows high speed inspection while maintaining high accuracy and precision. Specially coated shafts deliver quiet operation and minimal wear for lowest maintenance and calibration requirements
Mek’s process control system, the Catch System can network multiple Mek AOI machines into a completely closed loop process monitoring and quality control system uniquely optimised for each user’s workflow and internal organization.
