iSpector Entry-Level AOI
Affordable Inline and Benchtop AOI Options

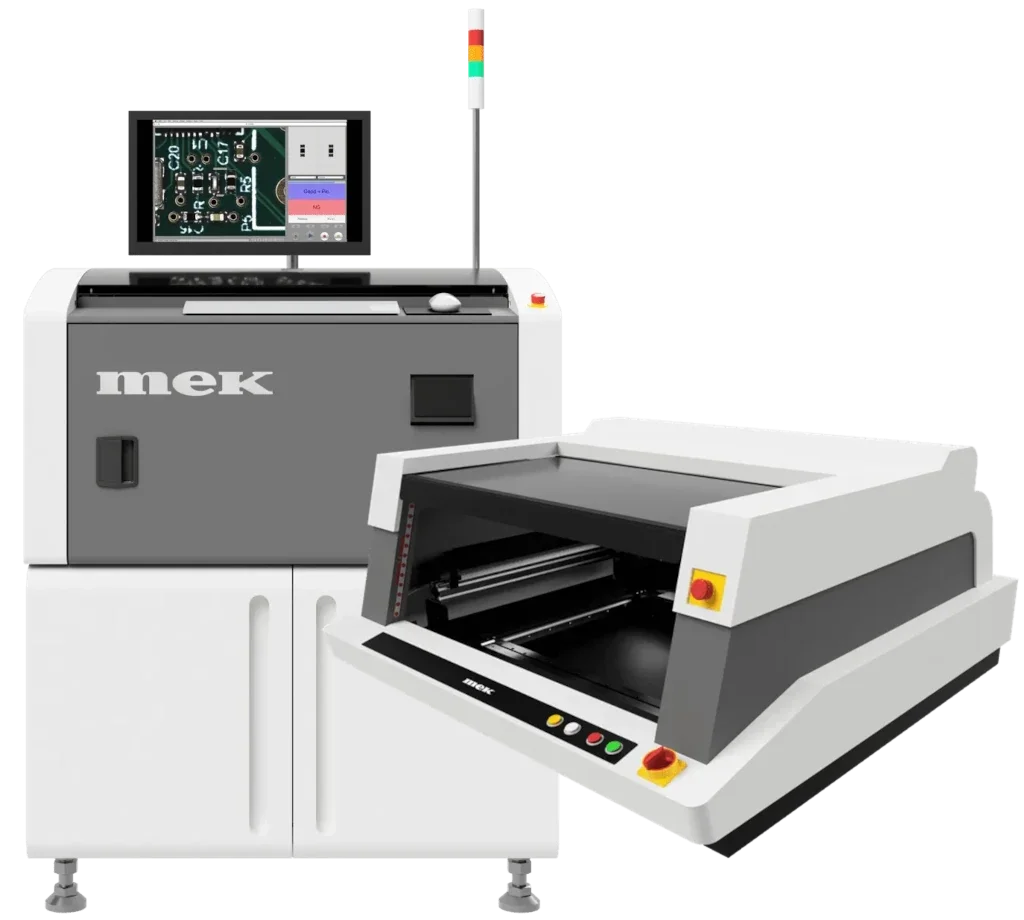

Mek’s foremost entry-level AOI systems, the Mek iSpector desktop and inline machines deliver the fastest return on investment for EMS customers that seek optical flexibility, easy programming & usage and the highest inspection performance guarantees. These low-priced machines were designed for customers with low volume, high mix production requiring high-quality AOI.
iSpector machines use a Z-axis for to maximum flexibility in THT, tall component inspection, hybrid and sandwiched SMD inspection. The Z-axis enables inspection of objects at different height levels such as sandwiched PCB’s, tall components or positional measurement of tall connector pins.
The Mek iSpector series is fully compatible with Mek’s Catch System for full traceability and industry 4.0 readiness. There is no compromise on the wide range of inspection algorithms and component libraries. The Catch System comprises the following modules: Database CS Center, CS Repair, CS Analyser and CS Watch. Catch is a fully scalable solution from single AOI stations to multiple machines.
Additional Features:
Clean and Simple Interface with powerful features
Full programming capabilities

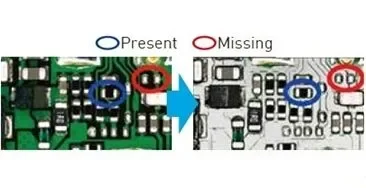

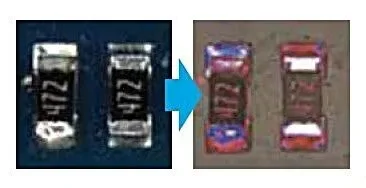

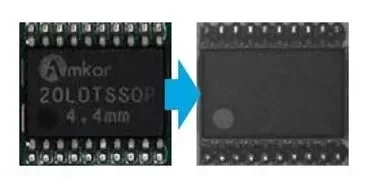

Solder inspection, component presence/absence, polarity and value.
Z axis allows the inspection of taller components and hybrid PCBs
Import NC Data from your pick and place system or most popular CAD/CAM software.
Utilize our extensive custom Libraries to provide fast programing times and reliable results with low false fails.
Rapid and repeatable inspection processes, with reliable screw and servo driven motions
