ISO-Spector S3 5D SPI

5D Solder Paste Inspection Systems

The new ISO-Spector S3 series is a 5D Solder Paste Inspection system offering a comprehensive suite of advanced features at a very low cost.

Measuring solder shapes, volume and offset, our SPI solution delivers easy programming, low maintenance and many customisation options. Experience zero defects and zero downtime with the ISO-Spector S3 series today!

The ISO-Spector S3 series SPI machines boast a range of features designed to improve efficiency and optimize the solder paste printing process:

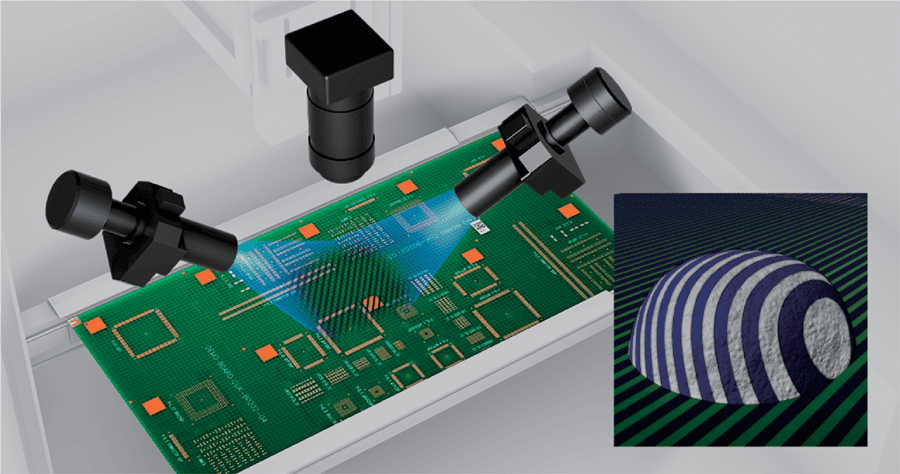

  • 3D projectors to calculate relative solder paste height via Moire pattern projections

  • Z axis auto-focus to compensate for PCB warp

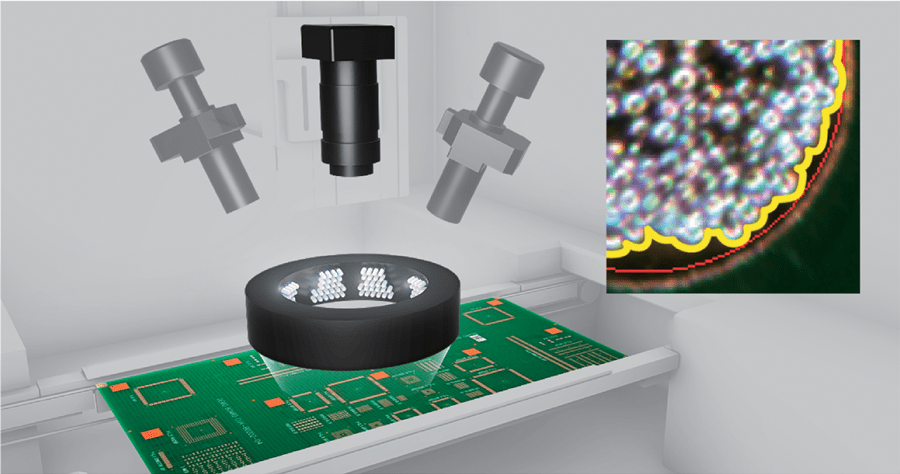

  • 360 degree ring light to isolate and clearly illuminate the inspection location

  • Resolution switching between low, medium, and high for flexibility in examining a greater variety of pads

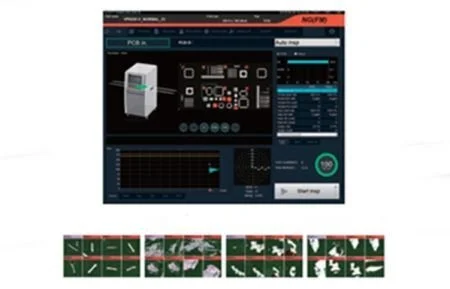

  • Foreign material and glue detection, especially useful for wave soldered SMT

  • User-friendly GUI and touch screen

  • Bad mark communication between machines

  • Closed loop integration for better quality and efficiency

  • SPC and Mek Catch compatibility for fast issue diagnosis

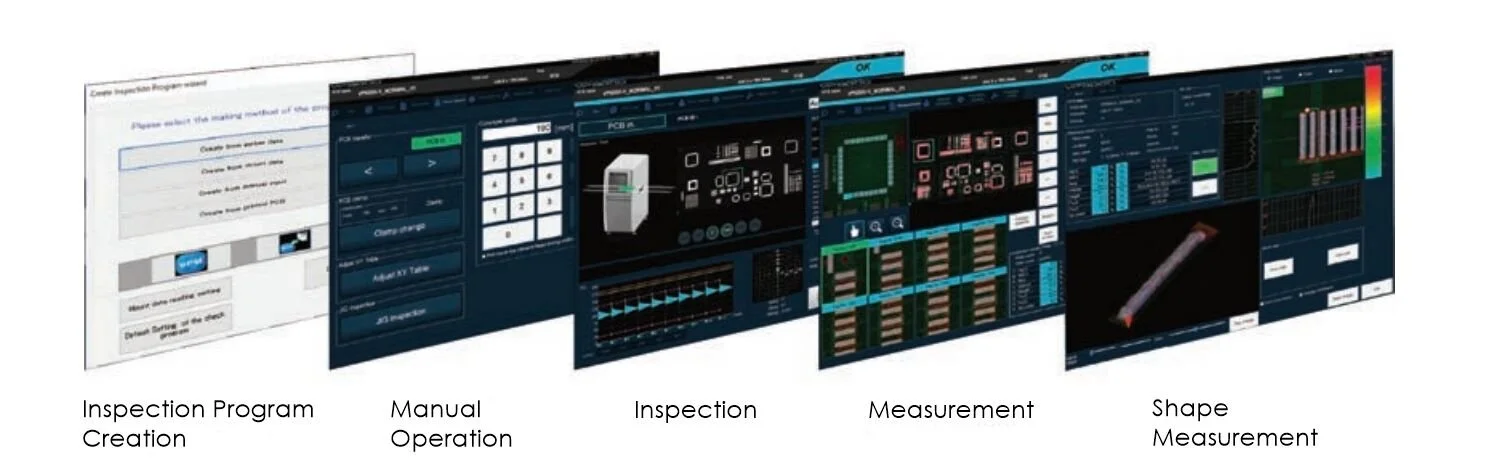

  • Create inspection programs in as little as 3 minutes with Gerber data and easy offline programming
